Bolt Patterns
If you've ever been in the market for new wheels or tires for your vehicle, you've probably heard the term "bolt pattern" thrown around. But what exactly is a bolt pattern, and why is it important? Let us explore the details of bolt patterns and their significance.

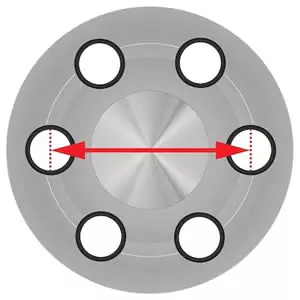

Bolt pattern refers to the number of lug holes and their spacing on a wheel. It is generally expressed as a two-number sequence indicating the number of bolt holes and the diameter of the circle that passes through their centers. For example, 5x112 bolt pattern implies there are 5 lug holes, and the diameter of the circle that passes through their centers is 112 millimeters.
Bolt patterns typically use metric measurements, but you can check out the bolt pattern conversion chart for measurements in inches. To measure your wheel's bolt pattern, you have to take into consideration the number of lug bolts it has. Read our comprehensive guide on how to measure bolt pattern.
The importance of bolt patterns lies in their compatibility with wheels. Not all wheels are created equal, and they come in different sizes, styles, and bolt patterns. If you want to change your wheels or upgrade to a different set, you need to make sure that the new wheels have the same bolt pattern as your vehicle's hubs. Otherwise, they won't fit and won't be safe to use.

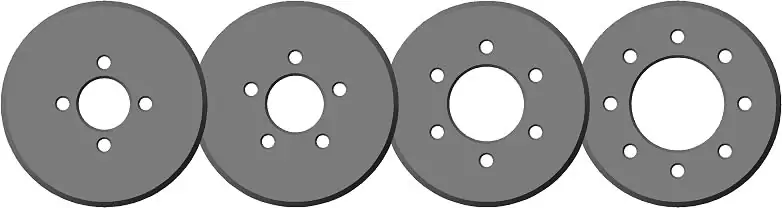

Most commonly used are 4-lug bolt pattern, 5-lug bolt pattern, 6-lug bolt pattern and 8-lug bolt pattern. Some vehicles also use 3-lug bolt pattern or 7-lug bolt pattern. It is important to confirm the exact bolt pattern for your vehicle before installing new wheels. You can also check the correct lug bolt pattern designated by vehicle's manufacturer in the vehicle owner's manual.
Keep in mind that bolt pattern is not the only consideration when it comes to choosing wheels for your vehicle. You also need to take into account the wheel's diameter, width, offset, and backspacing, as well as the tire size and aspect ratio. All of these factors play a role in determining the fitment and performance of your new wheels and tires.
Select bolt pattern to see its technical specs and vehicle fitment options.
3 Lug Bolt Pattern
3 lug bolt pattern means that there are three lugs on the hub and three lug holes on the wheel. This type of bolt pattern is relatively uncommon and is typically found on smaller vehicles such as compact cars, subcompacts, and some small trailers.
Discover how to measure 3 lug bolt pattern.
4 Lug Bolt Pattern
4 lug bolt pattern means that there are four lugs on the hub and four lug holes on the wheel. This type of bolt pattern is commonly found on smaller vehicles such as compact cars or subcompact cars.
Discover how to measure 4 lug bolt pattern.
5 Lug Bolt Pattern
5 lug bolt pattern means that there are five lugs on the hub and five lug holes on the wheel. It is the most common bolt pattern used for wheels on passenger cars, trucks and sport utility vehicles.
Discover how to measure 5 lug bolt pattern.
6 Lug Bolt Pattern
6 lug bolt pattern means that there are six lugs on the hub and six lug holes on the wheel. This type of bolt pattern is common on larger vehicles such as trucks, SUVs and some vans.
Discover how to measure 6 lug bolt pattern.
7 Lug Bolt Pattern
7 lug bolt pattern means that there are seven lugs on the hub and seven lug holes on the wheel. This type of bolt pattern is relatively uncommon, and is typically found on heavy-duty trucks, trailers and commercial vehicles.
Discover how to measure 7 lug bolt pattern.
8 Lug Bolt Pattern
8 lug bolt pattern means that there are eight lugs on the hub and eight lug holes on the wheel. This type of bolt pattern is commonly used in trucks and heavy-duty vehicles.
Discover how to measure 8 lug bolt pattern.
