Ultimate Guide to Torque Wrenches

Discover everything you need to know about torque wrenches, including how they work, the different types available, and how to use them effectively. Our comprehensive guide provides expert insights and tips to help you select the right torque wrench for your needs and achieve accurate, reliable torque measurements every time.

What is a Torque Wrench?

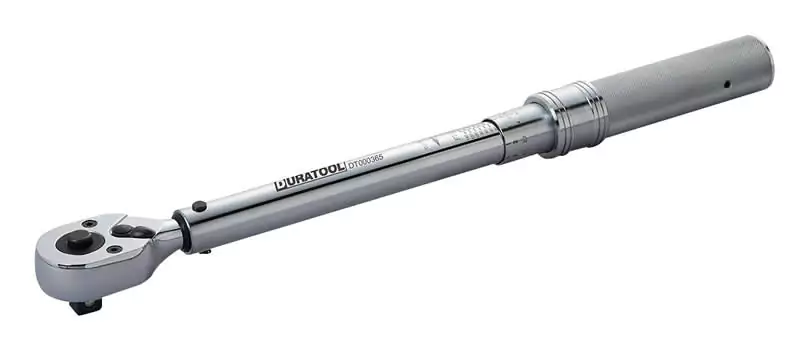

A torque wrench is a specialized tool used to tighten bolts or nuts to a specific torque (tightening force) setting. It is commonly used in mechanical and automotive applications where precise tightening of bolts and nuts is critical for safety and performance reasons.

The torque wrench works by applying a predetermined amount of force to a bolt or nut. This force is typically measured in units of Newton-meters (Nm) or foot-pounds (ft-lbs). The wrench is designed to "click" or release when the preset lug nut torque is reached, indicating that the desired tightening force has been achieved.

Using a torque wrench is important to ensure that lug bolts and lug nuts are tightened to the correct specification, preventing under-tightening, which can result in bolts coming loose, and over-tightening, which can damage the bolt or the part it is securing.

Torque Wrench Types

There are several types of torque wrenches, including beam, split beam, click, digital and dial. Each type has unique design and functionality, and the choice depends on the specific application and personal preference.

• Beam torque wrench is the simplest and most economical type of torque wrench. It uses a calibrated lever arm to measure the amount of torque being applied to a fastener or bolt. The lever arm has a pointer that moves along a graduated scale, indicating the amount of torque being applied. To use a beam torque wrench, you first set the desired torque level on the wrench's scale. Then, you apply force to the wrench until the pointer reaches the desired torque level. At this point, the wrench will provide an audible "click" or "snap" to indicate that the desired torque has been reached. Beam torque wrenches are typically less expensive and more durable than other types of torque wrenches, such as digital or dial torque wrenches.

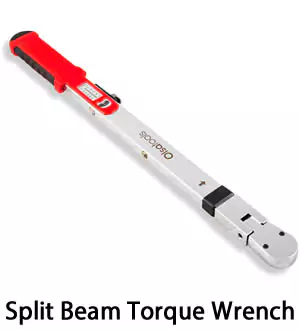

• Split beam torque wrench is a type of torque wrench that features a unique design where the torque is measured by deflecting a beam, which is split into two parts. One end of the beam is fixed to the wrench head, while the other end is attached to a handle. When torque is applied to the wrench, the beam deflects, and the degree of deflection is measured by a scale on the wrench body. This measurement allows the user to accurately determine the amount of torque being applied to the fastener. The split beam design of this type of torque wrench offers several advantages over other designs. One of the main advantages is that it does not require a reset to zero after each use, which makes it faster and more convenient to use. Additionally, split beam torque wrenches are generally more durable and reliable than other types of torque wrenches.

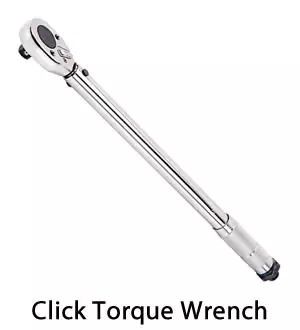

• Click torque wrench is the most popular and widely used. It has a spring-loaded mechanism that "clicks" when the preset torque value is reached, indicating that the desired torque has been achieved and the fastener has been tightened to the correct specification. It is accurate and reliable, but it requires periodic calibration.

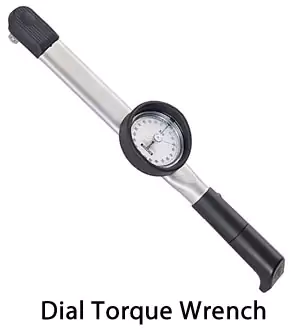

• Dial torque wrench has a calibrated dial that displays the amount of torque being applied as the user tightens the fastener. The wrench typically has a ratcheting mechanism that allows it to be used in tight spaces, and a locking collar that helps prevent accidental changes to the set torque value. To use a dial torque wrench, you first need to set the desired torque value on the dial. Then, you attach the wrench to the bolt or nut you want to tighten, and apply force until the wrench clicks or the dial reaches the set torque value. The click or visual indication on the dial lets you know that you have reached the desired torque, and you can stop tightening the fastener at that point. It is easy to read and offers good accuracy, but it is more expensive than other types of torque wrenches.

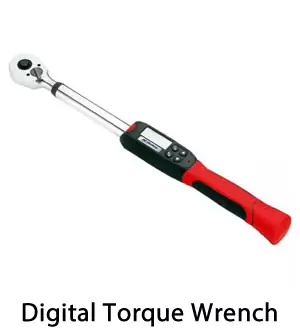

• Electronic torque wrench or digital torque wrench incorporates a digital display to provide accurate torque measurements. It is typically used in automotive, mechanical, and industrial applications where precise torque values are critical to ensure the proper function and safety of equipment. Unlike traditional torque wrenches that rely on mechanical gauges to display torque readings, digital torque wrenches use electronic sensors to measure torque and display the results on a digital screen. This makes it easier to read and interpret the torque values, and eliminates the need for manual calculations or conversions. Digital torque wrenches also often have features like programmable torque settings, data logging, and wireless connectivity, which allow for greater precision and flexibility in torque measurement and data collection. Overall, digital torque wrenches offer a more efficient and accurate method for measuring torque compared to traditional torque wrenches, but are also the most expensive type of torque wrench.
• Hydraulic torque wrench is typically used in heavy-duty applications, such as construction and industrial settings. It uses hydraulic pressure to apply torque and is capable of delivering high levels of torque with precision. It is the most expensive type of torque wrench and requires specialized training to use.

Applying the accurate torque is essential for safety, assembly and performance of the wheels. If the inaccurate amount of torque is applied, it can result in loosening or breaking of fasteners and equipment failure.

Where to Buy a Torque Wrench?

You can get the best prices on quality torque wrenches on Amazon and eBay.

If you are looking for a high quality torque wrench, consider these trusted brands:

Snap-On

Snap-On is a well-known brand that produces a wide range of hand tools and equipment. Snap On torque wrenches are available in a variety of styles and sizes, including beam-style, click-style, and digital torque wrenches. Snap On torque wrenches are known for their accuracy and durability, and they are commonly used in automotive and industrial settings. They can be calibrated to ensure accuracy, and they typically come with a warranty or guarantee from the manufacturer.

Buy Snap-On torque wrench on Amazon and eBay.

Harbor Freight

Harbor Freight is a popular retailer of tools and equipment in the United States, and they offer several different torque wrenches in their product line. Harbor Freight torque wrenches are a popular and affordable option for DIY enthusiasts and professionals alike.

Buy Harbor Freight torque wrench on Amazon and eBay.

Milwaukee

Milwaukee is a well-known brand that produces high-quality power tools, hand tools, and accessories. Milwaukee offers a range of torque wrenches with different specifications and features to suit different applications.

Buy Milwaukee torque wrench on Amazon and eBay.

Tekton

Tekton produces a range of torque wrenches with different sizes, torque ranges, and styles to suit different needs and applications. Tekton torque wrenches are known for their accuracy, durability, and ease of use.

Buy Tekton torque wrench on Amazon and eBay.

How to Use a Torque Wrench

For a step by step guide see how to use a torque wrench to tighten lug nuts or lug bolts.

All listed guides, data and/or calculations are for informational purposes only. LugBoltPattern.com does not warrant or make any representations regarding the accuracy of or the results of the use of this information.
