Minimum Thread Engagement

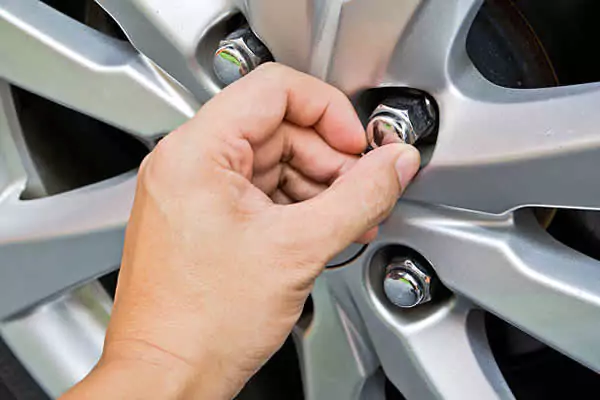

Thread engagement is a crucial metric when tightening lug bolts or lug nuts, as it directly affects the strength and stability of their connection with the wheel's hub. Understanding minimum thread engagement can help ensure the strength and effectiveness of the fastener in a wheel application.

What is Minimum Thread Engagement?

Minimum thread engagement refers to the minimum length of thread engagement required between a bolt and the internal threads of a nut to ensure a reliable joint between them. The purpose of thread engagement is to provide sufficient clamping force to hold the joint together and prevent loosening under external loads and vibrations.

The minimum thread engagement depends on various factors, such as the material properties, thread type, diameter, and pitch. As a general rule, a thread engagement of at least one thread diameter is recommended for most applications. For example, if the diameter of the bolt or screw is 10mm, the minimum thread engagement should be at least 10mm.

It is important to note that insufficient thread engagement can lead to premature failure of the joint due to thread stripping, galling, or other forms of damage. Therefore, it is always recommended to follow the manufacturer's recommendations or consult a wheel expert to determine the appropriate thread engagement for your wheel application.

Minimum Thread Engagement Chart for Lug Nuts and Bolts

Listed below are number of turns recommended to achieve the minimum thread engagement for common lug nut and bolt sizes.

Lug Nut / Bolt Size	Number of Turns
M14x2.0	6 - 7
M14x1.5	7.5 - 9.5
M14x1.25	9 - 11
M12x1.75	6 - 7
M12x1.5	6.5 - 8
M12x1.25	8 - 9.5
1/2"-20	8 - 10
5/16"-18	6 - 7
7/16"-20	8.5 - 9
9/16"-18	8 - 10

All listed guides, data and/or calculations are for informational purposes only. LugBoltPattern.com does not warrant or make any representations regarding the accuracy of or the results of the use of this information.
